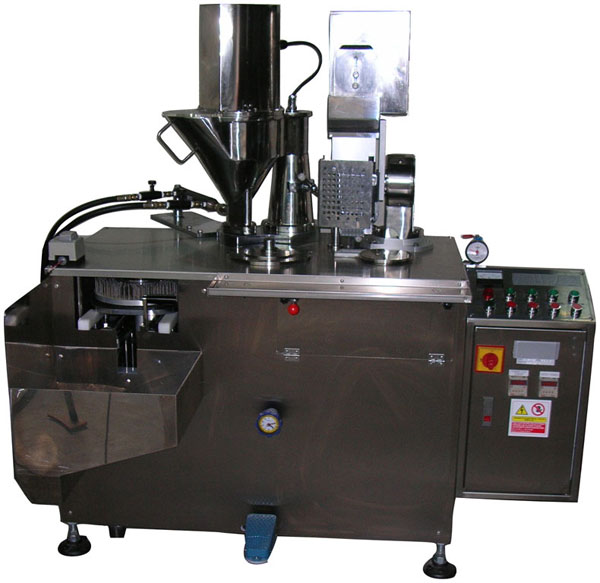

Semi automatic capsule filler(horizontal)RSA-01

Semi automatic capsule filler(horizontal)RSA-01

    Features:
  • All outer casting of the machine includeing hopper,machine table,etc are all made of stainless steel meeting cGMP requirement
  • Infinitely variable speed of filling table with independent power and fix point Filling that the result in accurate dosage
  • No painting finish on the machine surface thus it can avoid that the paint strip Off and mix into the powder,then free comtamination of the capsule
  • The horizontal closing system is more efficient ,safety,and smoothly closes without damaging the capsule
  • A special design allow for changing mold for different size capsule within 15 minutes easily ,simply and precisely.
  • Simple structure and free of malfunction,easy to maintain and clean.
  • 7. simple operation,only one operator require,and operating training can done in 15 minutes.
  • Different filling weights can be adjusted without change parts

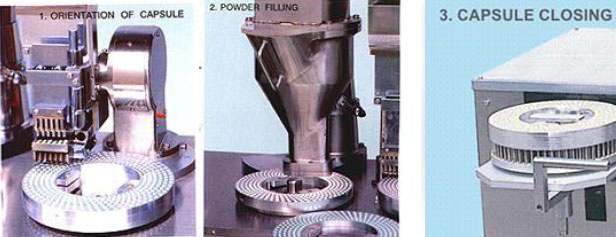

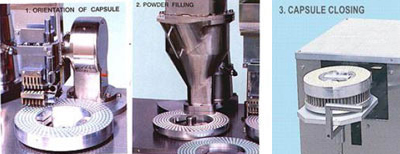

OPERATION:
RSA-02

Application:
1.casple #000,#00,#0,#0E,#1,#2,#3,#4,#5
2.powder, pellets or granual

    Technical data:
  1. Capacity : 22000-25000capsule per hour
  2. Power consumption : 2.5kw
  3. Air comsumption : 125L/min,6bar
  4. Machine dimension : L150xW90xH.150cm
  5. Packing dimension : L180XW120xH.180cm
  6. Net weight/gross weight : 600kgs/800kgs
   Company information
  • Richmech Industrial Co.,Ltd.
  • TEL : 886-2-2502-2949
  • FAX : 886-2-2505-0192
  • Contact Person : Allen Chen
