Tablet deduster RTD-30

Tablet deduster RTD-30
Tablet Deduster RTD-30 Series is suitable for the dedusting of all shape tablets. It is adapted to all types of tablet machine. With the attachment of duster and compressed air the dust can be got rid of during the vibration at the filter disc

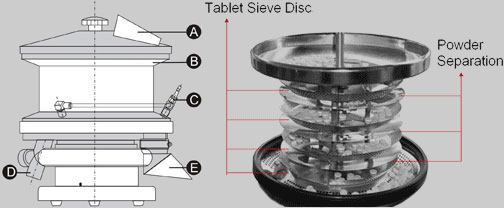

  • Tablets enter the inlet A . Withthe function of vibration the tablets move along the concave channel of filter disc B .
  • When tablets move down to the lower filter disc the tablets can turn upside down automatically.
  • During the process the tablets are polished. When the tablets move to the lowest disc the compressed air will blow away the dust which are sucked away by dust pipe D .
  • Finished clean tablets will be ejected from outlet E.
    Technical data:
  1. Model : RTD-30
  2. Output : 0-400000 pcs/hr(dia.5mm tablet)
  3. Power : 220V 50/60hz 1P ,100V 50/60hz 1P
  4. Net weight/gross weight : 50kgs/90kgs
  5. Compressed air : 0.1cubic meter/min 0.05Mpa
  6. Vacuum : 1.8cubic meter/min 0.01Mpa
   Company information
  • Richmech Industrial Co.,Ltd.
  • TEL : 886-2-2502-2949
  • FAX : 886-2-2505-0192
  • Contact Person : Allen Chen
