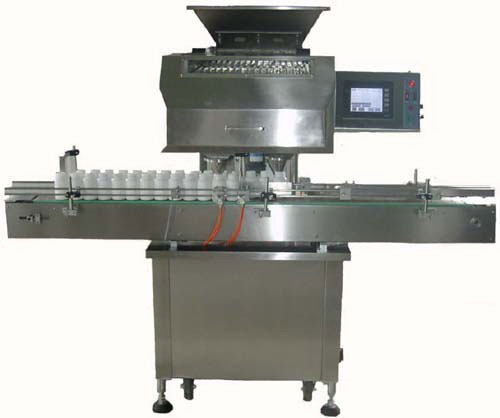

High Speed Tablet Counter (4heads) RAC-80

High Speed Tablet Counter (4heads) RAC-80

    Features:
  • 12channel
  • Mechanical contact part connected with drugs and drug use SS316 other non-contact parts for the SS304.
  • PV systems with the most advanced auto-fill light function with the operation of the dust a long time.
  • 5mm work tablets per minute 6000 production.
  • With dust recovery pipelines.
  • 1-9999 bottle can set the number of drugs.
  • With conveyor 1500mm.
  • Drugs matching the number of tablets can be automatically removed device error.
  • Membrane Switch with LCD Monitor.
  • Can remember 30 sets of parameters do not have to change the mold production.
  • Drug ingot can be applied to a transparent capsule shaped tablets, soft capsule.

RAC-80 RAC-80

    Technical data:
  1. Capacity : 360000 pcs/hr
  2. Product : Capsule # 00 - # 5 round tablets diameter 5-22mm
  3. Bottle : 20-100mm
  4. Bottle Height : 80-200mm
  5. Power : 220V/50-60HZ SINGLE PHASE
  6. Work rate of consumption : 800w
  7. Air consumption : 100litter/min
  8. Pressure : 6kg
  9. Drug storage barrels : 30litter
  10. Machine weight : 300kgs

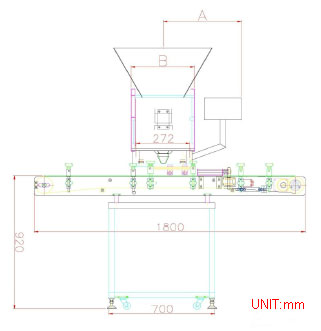

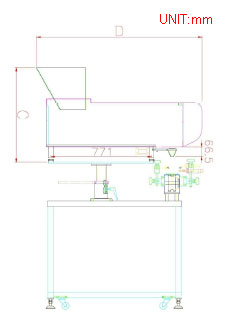

  11. Mechanical Dimensions(mm) : L.1800 W .1300 X H.1900

Medicine specification fill quantity per bottle bottle opening (mm) output (bpm)
Tablet diameter 5mm 60pcs
100pcs
40mm
40mm
50
50
Tablet diameter 10mm 60pcs
100pcs
40mm
40mm
50
50
Capsule #1 60pcs
100pcs
40mm
40mm
45
35
Capsule #3 60pcs
100pcs
40mm
40mm
45
37
