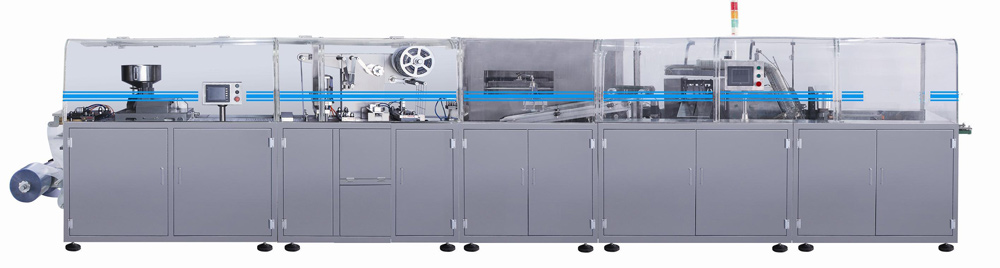

RBAC-100 AUTOMATIC BLISTR CARTONING MACHINE
AUTOMATIC BLISTER CARTONING MACHINE
IT』S SUITABLE PACKING PROCESSING ,BLISTER, OTHER RELATED SIMILAR PRODUCT CONTENT WITH COMPACT AUTO LEAFLET FOLDER,BOX LOADING,BATCH CODE EMBOSSING AND AUTO SEALING(OPTIONAL HOT GLUE SEALING).IT ADAPT PLC CONTROL,PHOTOELECTRICITY SUPERVISING TO COORDINATE WITH EVERY PART. AUTOMATIC STOP AND TROBLE DISPLAYING WHEN MACHINE RUNNING IN ORDER TO SOLVE TROUBLES IN TIME
.
- FEATURE:
- REJECTION AUTOMATICALLY,IF NO PRODUCT,NONSTANDARD HEIGHT OR LACK OF LEAFLET.
- STOP AUTOMATICALLY,IF INCORRECT POSITION OF PRODUCT,INTO CARTON.
- STOP AUTOMATICALLY,IF NO CARTON,OR OUT OF LEAFLETS CONTINUOUSLY.
- EASY CHANGE DIFFERENT PRODUCT.
- PROTECTING AUTOMATICALLY FOR OVERLOADING.
- 6. PLC AND TOUCH SCREEN AUTOMATICALLY DISPLAYING DEVICE FOR SPEED AND FINISHED PRODUCT COUNTING RBAC-100 .
- Main Technical Parameter of blister machine:
- Power supply : : 380V/50hz three phase 5.7kw
- Speed : 20-50cycle/min(alu/pvc) 15-30cycle/min(alu/alu)
- Packaing : 4800-1200blister/hr(alu/pvc) 3600-8400blister/hr(alu/alu)
- Max.forming area and thickness : 250x120x20mm
- Air consumption : 20m3/H(0.6bar)
- Dimension : 800Lx800Wx1800Hmm
- Main Technical Specification of carton machine
- Total Power : 380V/220V 50Hz 6.2kw
- Main Motor Power (kw) : 1.5
- Power supply : 380V/50Hz three phase 4kw
- Product capacity : 50-100bpm
- Air consumption : 20m3/H(0.6bar)
- Box specification : min.50Lx20Wx14Hmm max.200Lx80Wx50Hmm
- Box quality : 250-350g/m2
- Leaflet quality : 50-60g/m2
- Leaflet specification min 100Lx100Wmm-max.260Lx190Wmm
- Dimension : 3250Lx1450WxH1550mm
- Weight : 1200kgs
