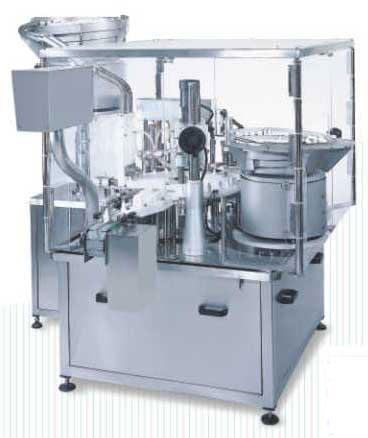

Eye drop filling/plugging/ cap sealing machine RLEC-90

Eye drop filling/plugging/ cap sealing machine RLEC-90

    Feature:
  • Adopt single axle adjusting piston, the request filling volume can be adjusted quickly and precisely.
  • The part of piston which contacts with the liquid is made of fine ceramics. Can avoid the contamination and meet the GMP standard.
  • Automatic feeding bottle, positioning and operation are controlled automatically.
  • The automatic capping is designed according to the sealing mouth of screw cap. The fastening (sealing) range can be adjusted according to the material of cap.
  • With safety device, machine will stop automatically when bottle fell down or not in correct position during use the hand-wheel.
  • When specification of the bottle is changed. It only needs to change starwheel. The height can be adjusted also. It is very easy to wash & clean.
  • Adopt stepless speed variation motor, the operation speed can be adjusted freely.
  • It can be run individual or connected with automatic labelling machine and automatic cartoning machine to complete the whole line running in one line production.
  • The Monoblock machine is designed for automatic filling, inner plugging and over-capping onto small containers, most suitable for eye-drop and small volume injection liquid production to meet with GMP standards.

RLEC-90

Application:
Suitable for eye-drop bottle, cosmetic, pharmaceutical chemical liquid etc filing, plugging and over-capping operations.

    Specification:
  1. Model Type : RLEC-90
  2. Filling Volume : 2c.c.~20c.c.、15c.c.~40c.c.、30c.c.~60c.c.、50c.c.~100c.c.
  3. Speed : 35 - 70- bottles/min.
  4. Motor : 1HP & 60W
  5. Air Pressure : 4 - 6 kg (Prepared by buyer)
  6. Vacuum Press Consumption : 220 L/min
  7. Electric Power : 220V, 50/60 Hz , single phase

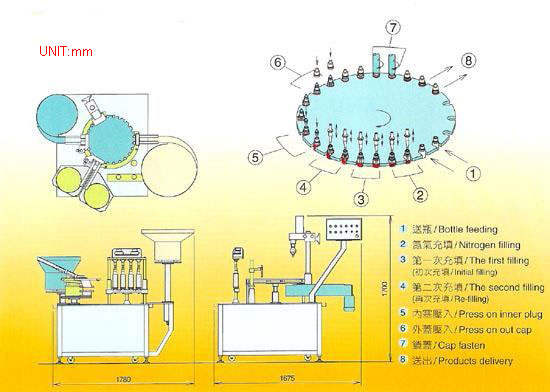

  8. Machine Dimension : (L)1780mm x (W)1675mm x (H)1700mm
  9. Machine Weight : 950 kgs
  10. Optional Bottle Feeding Devices:
    a. Turn-Table - For Glass Vial or Plastic Bottle. (Maximum: 60O x 100H , 26O x 56H)
    b. Vibrator- For Plastic Bottle. (Maximum: 25O x 55H , 13O x 39H)
    c. Nitrogen filling.
