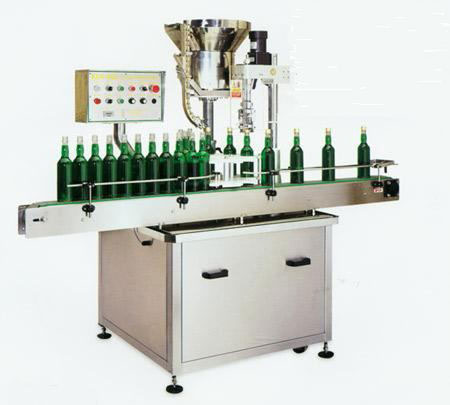

Rotary star wheel type Capping machine RCAP-60
- Features:
- Automatic cap sealing Is designed for those bottle mouths to be sealed with aluminum cap and/or spiral-type cap.
- It is also possible for sealing with plastic screw cap and the sealing requirements can be adjusted according to the materials of the cap.
- A safety equipment is attached to this machine, which will automatically stop its operating in case of any fell down of battle, Improper positioning of the bottle to be capped, or of the manual opoeration is ntruded.
- The soft device permits to reduce the friction loss of machines, thus to prolong the service life of this machine.
- When specification of the cap is changed, only to replace the star wheel required, the height can be also adjusted according to that of the bottles to be capped. It is very easy to wash and clean.
- A stepless speed variation motor is used for the operation speed can be adjusted as desired.
- It operates independently, or it can be connected with the Automatic Flillng Machine & Automatic Labeller Machine for a consisted intergrated automatic production.
- This machine adopted brake clutch and index therefore bottle intake, positioning and cap sealing all are automatic operation and positioning in the line to meet with G.M.P standard.
Specifications:
| Models | RCA-60-RA | RCA-60-ST | RCA-60-PP |
| Sealing Type | Roll-on aluminum | Screw type | Press-on-Plastic |
| Speed | 30~60 | 30~60 | 30~60 |
| Motor Power | 1 HP | 1 HP | 1 HP |
| Source Power | 220/single phase V 60/50Hz |
220/single phase V 60/50Hz |
220/single phase V 60/50Hz |
| Maching Dimension(mm) | 2200Lx900Wx1750H | 2200Lx900Wx1750H | 2200Lx900Wx1750H |
| Machine Weight | 500kgs | 500kgs | 500kgs |
| Air Press | 5-6 kg | 5-6 kg | 5-6 kg |
| Vacuum press consumption(Screw type) | 5 L/min | 5 L/min | 5 L/min |
