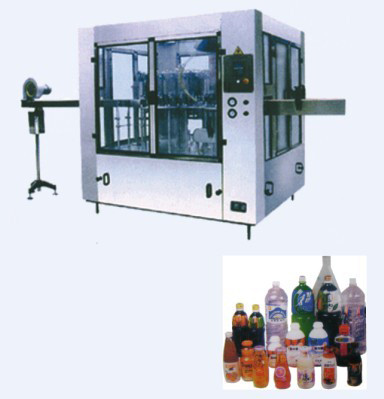

The machine integrate filling capping functions into one unit, the whole process are actualized automatically.
It is applied for PET bottle, plastic bottles or containers which are filling with drinks, water, edible oil at room temperature filling or hot filling with gas or without gas, etc. It is widely used on the range of large quantities, such as water, beverage, and condiment oil and so on.
It is the best choice for the companies.
As it adopts the suspending bottle-necks clamping design in order to make the bottle necks stable during the high speed moving status.
So it has larger quantity and more profit than all the machines which are at the same standard.
The human-machine interface is the touch-screen, PLC controlling and frequency changing technologies are used in the machine. Check the filling temperature automatically, alarm system for over heat, stop the machine when the temperature is too low and flow back automatically; supply caps automatically, no filling and capping without bottle, It will wait when it is lack of bottle, and it will stop when it is lack of caps, it really actualizes automatically.

    Technical Parameter :
  1. Suitable container : Round bottles 35-100, H85-320mm
  2. Filling speed : 2000-18000p/h
  3. Power supply : 3 phase 380V, 50/60HZ
  4. Electrical power : 1.5KW
  5. We can customize your order if you have special demands.
  6. Main Character : Filling fleetly, efficient and steady.
  7. Can be with a constant temperature of the circulatory system, temperature-controlled, automatic return
  8. Replace bottle types quickly and convenient
  9. Pressure filling, surface positioning, precise quantitative
  10. Reverse magnetic-type screw cap to ensure that the tightened without damaging
  11. LCD touch-interface, operation is more easily
  12. Can store multiple sets of information, there is no need to debugging when the bottle
  13. type changes and it has a count function. Convergence can be stand-alone or pipelining
  14. Touch screen, PLC, transducer and other electrical components selected imported brands
  15. Contact parts with some materials are 316L stainless steel
